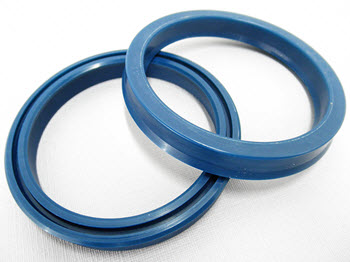

What Are U-Cups, U-Seals, and Polypaks?

U-Cups — also known as U-Seals or Polypaks — are among the most widely used sealing solutions in hydraulic and pneumatic systems. Their distinctive U-shaped cross-section allows them to deliver reliable sealing performance in both dynamic and static applications, particularly in reciprocating systems.

Because of their pressure-energized design, compact gland requirements, and material versatility, U-Cups are a preferred solution for engineers designing rod and piston sealing systems across industrial, mobile equipment, aerospace, and fluid power applications.

In this guide, we’ll explore:

• How U-Cups work
• Differences between U-Cups and Polypaks
• Available lip profiles and configurations
• Common applications
• Material options
• Installation considerations
• Performance advantages

How U-Cups Work

As their name implies, U-Cups feature a U-shaped profile with:

• An outside static sealing lip
• An inside dynamic sealing lip

This geometry is what makes U-Cups highly effective in hydraulic sealing applications. The “U” cavity allows system pressure to enter the seal profile, energizing the lips outward. As pressure increases, the sealing force increases — creating a responsive, pressure-activated seal.

Unlike compression-based seals that rely solely on squeeze to maintain contact, U-Cups leverage system pressure to improve sealing performance. This makes them particularly valuable in applications requiring:

• Low breakaway friction
• Minimal stick-slip
• Responsive sealing under varying pressures

Because they do not rely heavily on initial compression to seal, U-Cups perform exceptionally well in low-pressure startup conditions while still handling higher system pressures effectively.

This pressure-energized behavior is what makes U-Cups ideal for reciprocating hydraulic cylinders, pneumatic actuators, and linear motion systems.

U-Cup vs. Polypak: What’s the Difference?

U-Cups come in two primary configurations:

1. Unloaded U-Cups

An unloaded U-Cup does not contain an internal energizing element. It relies solely on system pressure to activate the sealing lips. These are commonly used in applications where pressure is sufficient to maintain consistent sealing performance.

2. Loaded U-Cups (Polypaks)

A loaded U-Cup — often referred to as a Polypak — includes an internal O-Ring or quad ring positioned inside the U-shaped cavity.

This energizer serves multiple purposes:

• Provides initial sealing force before system pressure builds
• Improves low-pressure performance
• Enhances sealing consistency
• Reduces leakage during pressure fluctuations

Loaded B-Type symmetrical U-Cups are particularly versatile and are commonly used in reciprocating applications up to 5,000 PSI.

The addition of the energizer makes Polypaks especially effective in applications where:

• Pressure cycles frequently
• Systems operate at low pressure
• Equipment experiences vibration or shock loading

For applications requiring enhanced low-pressure sealing or improved responsiveness, Polypaks are often the superior choice.

Types of U-Cup Lip Profiles

Not all U-Cups are identical. Different lip profiles are engineered to match specific application demands.

Standard U-Cup

The standard U-Cup features equal cross-section and height dimensions. This symmetrical design provides reliable sealing performance in general-purpose rod and piston applications.

Deep U-Cup

The deep U-Cup has a greater height than its cross-section. This increased height provides improved stability and enhanced sealing in higher-pressure applications or where additional lip support is required.

Beveled Lip U-Cup (B-Type)

The B-Type U-Cup features a beveled lip geometry designed to optimize lip contact and reduce friction during reciprocating motion. This configuration improves wear characteristics and enhances performance in dynamic sealing environments.

Loaded B-Type symmetrical U-Cups are particularly popular due to their ability to handle demanding reciprocating applications up to 5,000 PSI while maintaining reliable sealing performance.

Selecting the correct lip profile depends on system pressure, speed, temperature, and media compatibility — all critical factors in long-term seal performance.

Common Applications for U-Cups

U-Cups are widely used in both hydraulic and pneumatic systems. Because they are interchangeable for piston or rod sealing, they offer exceptional flexibility in system design.

Typical applications include:

• Hydraulic cylinders
• Pneumatic actuators
• Industrial presses
• Mobile construction equipment
• Agricultural machinery
• Aerospace systems
• Material handling equipment

They are especially common in linear motion applications where reliable rod or piston sealing is required.

One of the key reasons U-Cups remain popular in modern equipment design is their compact gland requirement. They require a gland space that is a minimum of 110% of the seal height. This free space allows for:

• Thermal expansion of the sealing material
• Fluid-induced swelling
• Proper lip flexing under pressure

By requiring minimal gland space, U-Cups allow engineers to design more compact and efficient hydraulic systems.

Material Options for U-Cups

Material selection is critical to seal longevity and performance. Rocket Seals offers U-Cups in a variety of elastomers and engineered materials to meet demanding application requirements.

Common materials include:

Nitrile (NBR)

• Excellent resistance to petroleum-based oils
• Cost-effective
• Widely used in hydraulic applications

Urethane (Polyurethane)

• High abrasion resistance
• Superior wear performance
• Excellent for high-pressure hydraulic cylinders

FKM (Viton®)

• High temperature resistance
• Excellent chemical compatibility
• Suitable for aggressive media

Ethylene Propylene (EPR / EPDM)

• Strong resistance to water and steam
• Good chemical resistance

Highly Saturated Nitrile (HSN / HNBR)

• Improved heat and chemical resistance over standard NBR
• Extended service life in demanding environments

PTFE

• Low friction
• Excellent chemical resistance
• Suitable for high-speed and high-temperature applications

Material choice depends on:

• Operating temperature
• System pressure
• Fluid compatibility
• Speed of reciprocation
• Environmental exposure


Selecting the correct material ensures maximum seal life, reduced downtime, and lower total cost of ownership.

Advantages of U-Cups in Hydraulic Sealing

U-Cups remain a preferred sealing solution for several key reasons:

Low Breakaway Friction

Because they do not rely on heavy compression to seal, U-Cups offer lower breakaway friction compared to many traditional sealing solutions. This improves efficiency and reduces stick-slip in precision equipment.

Pressure-Responsive Sealing

As system pressure increases, sealing force increases — ensuring reliable performance across varying operating conditions.

Compact Design

Minimal gland space requirements allow for compact equipment design.

Versatility

U-Cups can function in both rod and piston applications, reducing part complexity and inventory requirements.

Cost-Effective

Compared to multi-component sealing systems, U-Cups and Polypaks provide strong performance at competitive pricing.

Installation and Design Considerations

Proper gland design and installation are critical for optimal U-Cup performance.

Key considerations include:

• Ensure gland space is at least 110% of seal height
• Avoid sharp edges during installation
• Confirm proper surface finish of rod or bore
• Verify pressure and temperature compatibility
• Ensure correct orientation for pressure direction

Improper installation can result in premature wear, extrusion, or leakage — even when the correct seal material is selected.

Working with a knowledgeable seal supplier like Rocket Seals ensures proper specification and long-term performance.

Partner with Rocket Seals for the Right U-Cup Solution

Selecting the right U-Cup, U-Seal, or Polypak isn’t just about matching dimensions. It’s about understanding pressure ranges, material compatibility, gland design, surface finish, and system dynamics. Even small specification differences can significantly impact seal life, leakage rates, and overall equipment reliability.

At Rocket Seals, we work directly with engineers, maintenance teams, and procurement specialists to ensure every hydraulic sealing solution performs exactly as intended. Whether you need a standard U-Cup for a general-purpose application, a deep profile for higher pressures, or a loaded Polypak for enhanced low-pressure sealing, our team can help you determine the best configuration for your system.

If you’re unsure which lip profile, material, or design will perform best in your application, contact the Rocket Seals team for expert guidance. We’ll help you evaluate pressure ratings, media compatibility, operating temperatures, and performance goals to ensure you get the right seal the first time, reducing downtime, improving efficiency, and extending equipment life.

Reach out to Rocket Seals today to discuss your U-Cup and Polypak requirements.
