Snap-In Wiper Seals: Design, Performance, and Application Considerations
Contamination is one of the most common causes of premature seal and cylinder failure. Dirt, moisture, dust, and debris introduced through a reciprocating rod can quickly compromise internal sealing components, leading to leakage, wear, and costly downtime. This is where snap-in wiper seals play a critical role.
Used extensively in hydraulic and pneumatic cylinders, snap-in wipers serve as the first line of defense against external contaminants.
While simple in appearance, their design, material selection, and placement within the gland can significantly impact overall system performance. Understanding how snap-in wipers work and how to specify them correctly helps extend seal life and protect critical equipment.
What Is a Snap-In Wiper Seal?

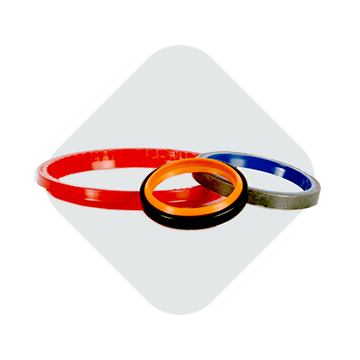

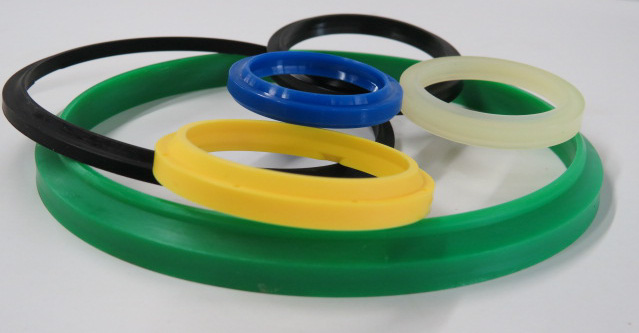

A snap-in wiper seal is a fully elastomeric rod seal designed to remove contaminants from a rod surface as it retracts into a cylinder. Often referred to as rod wipers, scrapers, or excluders, these components are installed in a groove at the rod end of the cylinder and rely on an interference fit to remain securely in place.
Unlike metal-clad wipers, snap-in designs contain no rigid carrier. This allows them to flex during installation and “snap” into the gland without the need for pressing tools or secondary hardware. Rocket Seals offers a wide range of snap-in wiper seal profiles to accommodate different gland geometries, rod diameters, and operating environments.
By wiping away contaminants before they enter the cylinder, snap-in wipers help preserve rod seals, bearings, and internal surfaces. This protective role becomes increasingly important as systems operate in dirty, wet, or abrasive environments.
Once the basic function of a snap-in wiper is understood, the next consideration is why these seals are so essential to long-term system reliability.
Why Snap-In Wipers Are Critical to Cylinder Performance
Hydraulic and pneumatic systems depend on clean operating conditions to perform efficiently. Even microscopic particles introduced into a cylinder can accelerate wear, disrupt lubrication, and degrade sealing surfaces over time. Snap-in wipers mitigate these risks by stopping contaminants at the point of entry.
One of the most significant benefits of snap-in wipers is their ability to extend the service life of primary rod seals. By preventing abrasive particles from reaching the pressure seal, wipers reduce scoring, extrusion, and premature leakage. This, in turn, lowers maintenance frequency and helps maintain consistent system performance.
Snap-in wipers are also valued for their ease of installation and replacement. Because they do not require press-fit tooling, they are well-suited for maintenance environments where minimizing downtime is a priority. Their elastomeric construction allows for flexibility in both installation and operation, even in applications with slight gland tolerances.
Performance benefits, however, depend heavily on choosing the correct wiper profile for the application.
Common Snap-In Wiper Profiles and Configurations
Snap-in wipers are available in several profiles, each designed to balance wiping efficiency, retention strength, and ease of installation. Selecting the correct profile ensures consistent contact with the rod while maintaining proper gland fit.
- A widely used option is the 940-style snap-in wiper, which features a single wiping lip and a robust heel designed for reliable retention. This style is commonly used in standard hydraulic applications where moderate contamination is present, and installation simplicity is desired.
- For environments requiring additional protection, double-lip snap-in wipers, such as the 8600 style, provide enhanced exclusion by adding a secondary lip that helps block finer particles and moisture.
- Metric cylinder designs often require specialized profiles, which is where MSWN and MSWH snap-in wipers are frequently specified. These styles accommodate metric gland standards and, in the case of MSWH profiles, offer double-lip performance for more demanding applications.
Each profile is engineered to meet specific dimensional and performance requirements, making it important to match the wiper design to both the cylinder geometry and environmental conditions.
Profile selection is only part of the equation — material choice plays an equally important role in wiper performance.
Material Selection and Environmental Considerations
The material used in a snap-in wiper seal directly affects its wear resistance, flexibility, chemical compatibility, and temperature capability. Choosing the wrong material can result in excessive wear, hardening, or loss of wiping effectiveness.
Urethane is one of the most commonly used materials for snap-in wipers due to its excellent abrasion resistance and durability in hydraulic environments. It performs well in applications where the rod is exposed to dirt or debris and where long service life is required.
Nitrile (NBR) wipers offer a cost-effective solution for systems operating with petroleum-based fluids and moderate temperatures. While not as abrasion-resistant as urethane, nitrile remains a practical choice for many industrial applications.
For environments with higher temperatures or aggressive media, FKM materials provide superior thermal and chemical resistance. Although more expensive, FKM snap-in wipers are often specified when operating conditions exceed the limits of standard elastomers.
With the right profile and material selected, it becomes easier to understand where snap-in wipers are most effectively applied.
Typical Applications for Snap-In Wiper Seals
Snap-in wipers are used across a wide range of industries wherever reciprocating rods are exposed to contaminants. In hydraulic cylinders, they protect rod seals in construction equipment, presses, lifts, and mobile machinery operating outdoors or in dirty environments.
In pneumatic cylinders, snap-in wipers prevent dust and airborne particles from entering air-powered systems, helping maintain smooth operation and consistent cycling. Manufacturing equipment, automation systems, and material-handling machinery frequently rely on these seals to reduce wear and maintenance.
Because snap-in wipers are easy to install and replace, they are especially useful in applications where routine service is expected and downtime must be minimized.
In some environments, however, contamination levels or mechanical demands may require a more robust solution.
Snap-In Wipers vs. Metal-Clad Wiper Seals

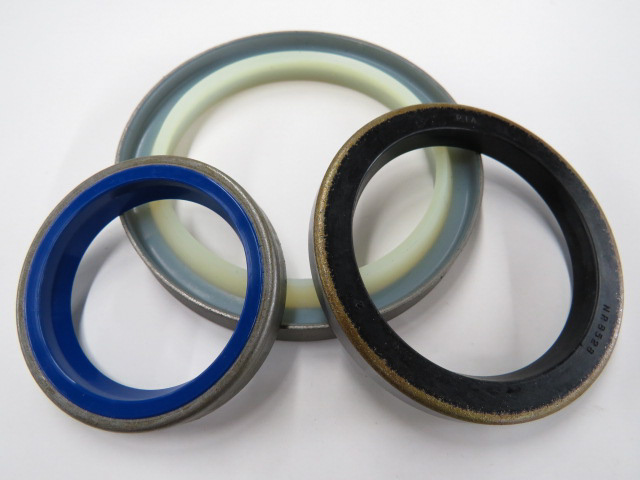

While snap-in wipers are effective for many applications, some systems benefit from the added rigidity of a metal-clad wiper seal. Metal-clad designs incorporate a steel outer shell that provides greater retention strength and resistance to mechanical deformation.
Rocket Seals offers metal-clad wiper seals for heavy-duty applications where extreme contamination, pressure washing, or physical impact is a concern.
The choice between snap-in and metal-clad wipers depends on operating conditions, installation requirements, and service expectations. Snap-in wipers are often preferred for light-to-medium duty applications, while metal-clad options are selected for more severe environments.
Regardless of the wiper type chosen, proper installation and maintenance are essential to achieving reliable performance.
Installation and Maintenance Best Practices
Proper gland design and installation practices ensure that snap-in wipers function as intended. The gland must be machined to the correct dimensions to provide adequate retention without over-compressing the elastomer.
During installation, care should be taken to avoid damaging the wiping lip or rolling the seal. A smooth rod surface free of nicks or scoring is also critical, as surface imperfections accelerate wear and reduce wiping efficiency.
Routine inspection of wipers during maintenance cycles helps identify wear early and prevents contaminants from reaching internal seals. Replacing a worn wiper is far less costly than repairing a damaged cylinder or rod seal assembly.
Small Component, Significant Impact
Snap-in wiper seals may seem minor, but their impact on system reliability is substantial. By preventing contaminants from entering hydraulic and pneumatic cylinders, they protect internal seals, extend equipment life, and reduce maintenance costs.
With a wide selection of profiles, materials, and sizes available, Rocket Seals supports a broad range of applications and operating environments. Specifying the right snap-in wiper — matched to your cylinder design and conditions — ensures cleaner operation and more dependable performance over the life of the system. Contact our team today to explore our many options and solutions.
