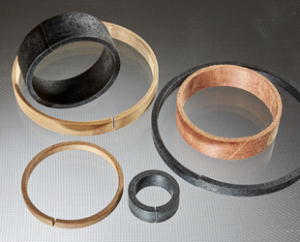

What Do You Know About Wear Rings or (Wear Bands)?
In any hydraulic or pneumatic system, precision and protection are everything. The smooth motion of a piston or rod depends on more than just seals and pressure — it relies on guidance and stability. That’s where wear rings — also known as wear bands or guide rings — play a critical role.
These unassuming components quietly handle some of the most demanding work inside a hydraulic cylinder assembly. They maintain the proper alignment of moving parts, minimize friction, and prevent metal-to-metal contact. Without them, even the most advanced sealing systems can wear out prematurely, leading to leaks, scoring, and costly downtime.
At Rocket Seals, we know that every part of a hydraulic system — right down to the smallest ring — contributes to system reliability and performance. That’s why we supply a wide range of wear rings, guide rings, and hydraulic sealing components designed to handle the toughest applications, from industrial machinery to heavy-duty equipment.
Below, we’ll explore how wear rings work, the materials used in their construction, and how to select the right type for your specific operating environment.
What Are Wear Rings and Why Are They Important?
The sliding movements of components, such as a piston in a cylinder tube or a rod in a gland, are subject to metal-to-metal contact when left unprotected. This contact can lead to galling, scratching, and premature seal failure. A wear ring acts as a sacrificial barrier that absorbs lateral forces, ensuring smooth and consistent movement.
Essentially, wear rings:
- Guide the piston or rod, maintaining proper alignment under side loads.
- Prevent metal-to-metal contact, protecting the cylinder wall and gland from damage.
- Extend seal life, by keeping the sealing surfaces evenly loaded and minimizing extrusion or distortion.
In short, they are the unsung heroes that keep hydraulic and pneumatic systems running smoothly and efficiently.
How Wear Rings Work in Hydraulic Cylinders
In a hydraulic cylinder, the piston and rod move back and forth under high pressure. Without wear rings, these components could tilt or “cock” slightly under uneven load, placing excessive stress on seals. The wear ring distributes these forces evenly along the bearing surface, keeping the motion smooth and consistent.
This improves:
- Seal performance, by maintaining uniform compression.
- System efficiency, by reducing friction and energy loss.
- Component longevity, by preventing uneven wear patterns.
A properly sized wear ring helps prevent side-loading damage and ensures consistent performance over thousands of cycles.
Common Materials for Wear Rings
The choice of wear ring material depends on the system’s operating conditions — including temperature, pressure, lubrication, and fluid type. The most common materials include:
Phenolic Resin (Fabric-Reinforced Phenolic)
- Excellent for high-load, low-lubrication applications.
- Common in heavy-duty hydraulic cylinders.
- High compressive strength and good wear resistance.
Glass-Filled Nylon
- Suitable for medium-pressure applications.
- Lightweight, cost-effective, and self-lubricating.
- Good dimensional stability and resistance to moisture absorption.
PTFE (Polytetrafluoroethylene)
- Ideal for low-friction, high-speed applications.
- Compatible with a wide range of hydraulic fluids and chemicals.
- Provides excellent wear resistance and minimal stick-slip behavior.
Acetal (POM)
- Good for light- to medium-duty hydraulic and pneumatic systems.
- Offers excellent dimensional stability and mechanical strength.
Each of these materials provides a different balance of durability, cost, and performance, making material selection a critical step in designing a reliable hydraulic or pneumatic system.
How to Select the Right Wear Ring
Selecting the best wear ring for your application requires understanding your system’s load, motion, and environmental conditions. Here are key factors to consider:
- Operating pressure and temperature: Ensure the material can handle the expected load and thermal expansion.
- Type of motion: Reciprocating, oscillating, or rotary motion may require different materials or surface finishes.
- System speed and lubrication: Faster systems need low-friction materials like PTFE, while slower, high-load systems benefit from reinforced composites.
- Fluid compatibility: Confirm the wear ring material is resistant to the hydraulic or pneumatic fluid in use.
At Rocket Seals, our experts can help match your system requirements to the right material, dimensions, and design for optimal performance and longevity.
The Benefits of High-Quality Wear Rings
Investing in high-quality wear rings can dramatically reduce long-term maintenance costs and improve overall system reliability. Benefits include:
- Longer seal life through better load distribution.
- Improved performance under high pressure and side loading.
- Reduced downtime due to fewer component failures.
- Lower operating costs, as smoother motion reduces energy waste.
- Protection against scoring and galling of metal surfaces.
In demanding industrial environments, these benefits translate directly into improved uptime and productivity.
Common Signs of Wear Ring Failure
Like all components in a hydraulic system, wear rings eventually degrade due to friction, heat, and mechanical stress. Recognizing early signs of failure can help prevent more costly system damage.
Symptoms of a worn or damaged wear ring include:
- Scoring or scratches on cylinder walls or rods
- Uneven seal wear or frequent seal replacements
- Increased vibration or side loading during operation
- Higher operating temperatures in the hydraulic system
- Reduced system efficiency or pressure loss
If you notice any of these signs, it may be time to inspect and replace the wear rings before damage spreads to the seals or cylinder surfaces. Routine maintenance — especially in heavy-duty or continuous-use systems — ensures the guidance components continue doing their job effectively.
At Rocket Seals, we carry replacement wear rings and guide rings in a variety of sizes and materials, ensuring quick turnaround and minimal downtime for your equipment.
The Relationship Between Wear Rings and Seals
Wear rings and seals may serve different purposes, but their performance is closely connected. The wear ring stabilizes motion, while the seal maintains pressure — and when either fails, the other can’t perform effectively.
When a cylinder is under pressure, the wear ring absorbs side loads and keeps the rod or piston centered. This alignment ensures the seals are compressed evenly, preventing extrusion or tearing. If the wear ring wears out or becomes damaged, seals are forced to compensate for misalignment — leading to premature leakage or failure.
Conversely, if seals begin to leak or generate excess friction, they can increase heat and surface wear on the wear rings themselves.
That’s why it’s crucial to inspect and replace both components together, especially in systems operating under high pressure or heavy load. Doing so helps:
- Maintain consistent sealing performance
- Prevent expensive repairs caused by secondary damage
- Improve operational safety and equipment life
Rocket Seals provides complete hydraulic and pneumatic sealing solutions, including wear rings, guide rings, piston seals, rod seals, and O-rings, all designed to work together for optimal performance and reliability.
Custom Wear Rings and Guide Rings from Rocket Seals
No two systems operate under the same conditions. That’s why Rocket Seals offers custom-engineered wear rings designed to meet your application’s unique performance needs.
Our experienced team works with you to determine:
- The right material blend for your pressure and speed.
- The tolerances and dimensions required for your cylinder.
- The optimal thickness and clearance to ensure proper fit and function.
Whether you’re replacing worn components or designing a new hydraulic system, we can supply precision wear rings that improve system life and reduce long-term maintenance costs.
Small Components, Big Impact
While they may seem minor compared to pistons or valves, wear rings and guide rings are critical for the efficiency, safety, and durability of hydraulic and pneumatic systems. They keep moving parts aligned, protect seals, and ensure long-lasting performance — all essential factors in keeping your equipment running reliably.
At Rocket Seals, we provide high-quality wear rings, wear bands, guide rings, and sealing components for a wide range of applications. Our team of sealing specialists can help you choose the right solution to enhance your system’s performance and minimize downtime.
