In various high-stakes industries such as aerospace, automotive, and manufacturing, the reliability and efficiency of sealing systems are paramount.
Back-up rings, often overlooked, play a vital role in ensuring the integrity of these systems. By preventing O-ring extrusion and enhancing the performance of seals under extreme conditions, back-up rings are indispensable in maintaining operational safety and efficiency.

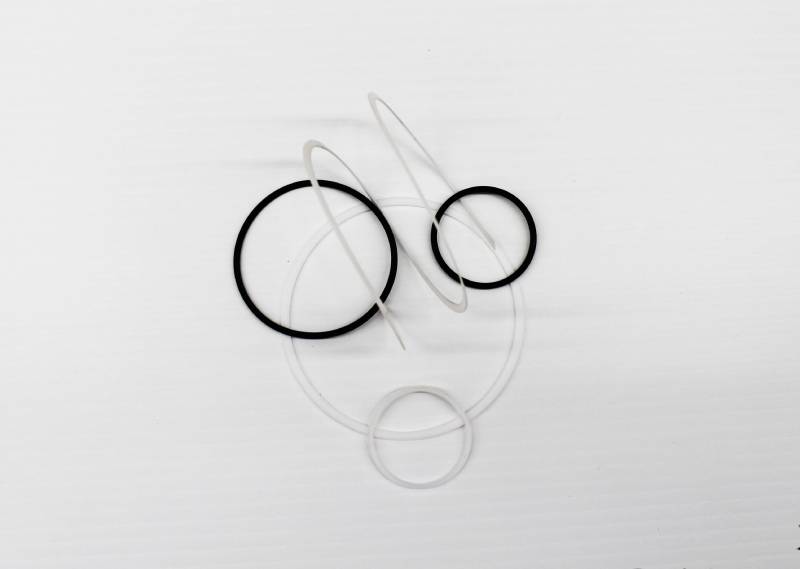

Rocket Seals carries Buna, PTFE Single Turn (split), and PTFE Spiral back-up rings in most standard sizes. Learn more about what a back-up ring is, why they’re so important in safeguarding critical systems and maximizing performance, and our top tips for installation and maintenance.
Types of Back-Up Rings
Variety in Design

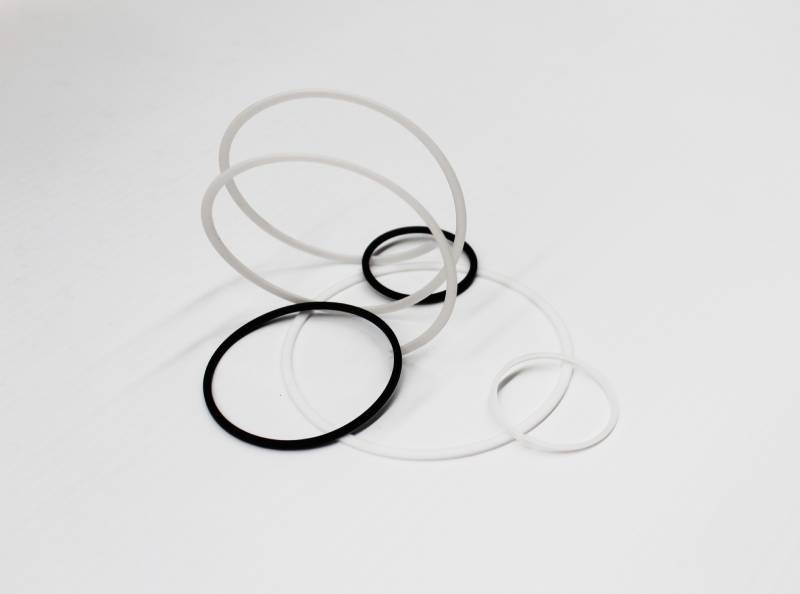

Back-up rings come in various designs, including contoured, flat, solid, split, and spiral configurations. The design choice depends on the specific application requirements and the ease of installation.
Split and spiral back-up rings, for example, are easier to install in confined spaces and around existing components without the need for disassembly.
Material Considerations
The material composition of back-up rings is critical to their performance. PTFE back-up rings offer excellent chemical resistance and low friction, making them suitable for harsh chemical environments.
Buna back-up rings, on the other hand, provide good resilience and are suitable for a wide range of temperatures and pressures.
How are Back-Up Rings Different from O-rings?
Back-up rings are designed to prevent O-ring extrusion, a common failure mode where the O-ring is forced into the clearance gap between metal surfaces under high pressure. This extrusion can lead to rapid seal failure, compromising the entire system.
Back-up rings, typically made from harder materials such as PTFE or Buna, fit into the gland between the seal and the clearance gaps, effectively providing zero clearance and preventing extrusion.
Its design allows it to withstand the extreme forces in aerospace and industrial applications. While standard O-rings focus on creating a tight seal between mating surfaces, the back-up ring complements this function by providing additional reinforcement, ensuring the seal remains intact.
This unique role positions the back-up ring as a critical component in seal systems, essential for ensuring operational reliability in the face of demanding conditions.
Differences Between Back-Up Rings and Other Types of Support Seals
Back-up rings and other support seals serve crucial roles in enhancing the performance of primary seals, but they differ significantly in design, function, and application.
While back-up rings are specifically designed to prevent the extrusion of O-rings under high pressure by providing additional structural support, other support seals, such as wipers, scrapers, and wear rings, serve different purposes.
Wipers and scrapers are designed to remove contaminants from surfaces, preventing dirt and debris from damaging the sealing components. Wear rings, also known as guide rings, provide lateral stability to pistons and rods, preventing metal-to-metal contact and ensuring smooth motion.
Advantages and Disadvantages of Various Support Seal Options
Each type of support seal offers unique advantages and potential drawbacks, making them suitable for different applications:
Back-Up Rings
Advantages
- Excellent at preventing O-ring extrusion under high pressure.
- Enhances the longevity and reliability of sealing systems.
- Can be used in both static and dynamic applications.
Disadvantages
- May increase friction in the system, depending on the material.
- Requires precise installation to ensure optimal performance.
Wipers and Scrapers
Advantages
- Protects seals from contaminants, extending their lifespan.
- Essential in environments with high exposure to dust, dirt, and debris.
Disadvantages
- Do not provide support against extrusion.
- Primarily used in dynamic applications, limiting their versatility.
Wear Rings
Advantages
- Prevents metal-to-metal contact, reducing wear and tear.
- Ensures smooth and stable operation of pistons and rods.
Disadvantages
- Do not contribute to sealing or prevent extrusion.
- Adds complexity to the system design and installation.
Situations Where Back-Up Rings Are the Preferred Choice
Back-up rings are particularly advantageous in situations where high pressure and extreme conditions pose significant risks to the integrity of sealing systems. Some specific scenarios where back-up rings are the preferred choice include:
- High-Pressure Hydraulic Systems: In high-pressure hydraulic systems, back-up rings provide essential support to prevent O-ring extrusion, ensuring consistent and reliable sealing performance.
- Aerospace Applications: The demanding conditions of aerospace environments, including extreme temperatures and pressures, necessitate the use of back-up rings to maintain seal integrity and prevent catastrophic failures.
- Oil and Gas Industry: Equipment used in oil and gas exploration and production often encounters high pressures and aggressive chemicals. Back-up rings enhance the durability of seals, protecting against extrusion and chemical degradation.
- Automotive Engines and Transmissions: In automotive applications, back-up rings support O-rings in high-pressure and high-temperature areas, such as engine and transmission systems, ensuring reliable operation and longevity.
By comparing back-up rings to other support seals, it becomes evident that each has its unique role and advantages.
However, in scenarios where preventing extrusion and maintaining seal integrity under high pressure is critical, back-up rings are the optimal choice, providing unmatched support and reliability.
Best Practices for Installing Back-Up Rings in Various Systems
Proper installation of back-up rings is crucial for ensuring their effectiveness and the overall reliability of the sealing system. Here are some best practices to follow:
Correct Orientation and Placement
Ensure the back-up ring is correctly oriented within the gland. In a single-acting system, the back-up ring should be placed on the side opposite to the direction of pressure. In double-acting systems, back-up rings should be installed on both sides of the O-ring.
Check the manufacturer's specifications for the correct placement and orientation, as improper installation can lead to extrusion and seal failure.
Appropriate Material Selection
Choose back-up rings made from materials that are compatible with the application’s operating conditions, such as temperature, pressure, and chemical exposure. Common materials include PTFE for high chemical resistance and low friction, and Buna for good resilience and temperature range.
Ensure Proper Fit
Verify that the back-up ring fits snugly within the gland without excessive compression or looseness. An improper fit can compromise the seal's effectiveness and lead to extrusion or leakage.
Use an O-ring size calculator or size chart to ensure accurate measurements and compatibility between the O-ring and back-up ring.
Avoid Overstretching
When installing split or spiral back-up rings, avoid overstretching them, as this can lead to deformation and loss of structural integrity. Use appropriate installation tools and techniques to minimize stretching.
Lubrication
Apply a compatible lubricant to facilitate installation and reduce friction between the back-up ring and the surrounding components. This helps prevent damage during installation and ensures smooth operation.
Maintenance Routines to Ensure the Longevity and Effectiveness of Back-Up Rings
Regular maintenance is essential to maintain the performance and extend the lifespan of back-up rings. Here are some maintenance routines to follow:
Regular Inspections
Conduct routine inspections of the sealing system to check for signs of wear, damage, or extrusion of the back-up rings. Early detection of issues can prevent more significant failures.
Inspect the back-up rings for signs of chemical degradation, especially in environments with aggressive chemicals.
Replacement Schedule
Establish a replacement schedule based on the operating conditions and manufacturer's recommendations. Even if the back-up rings appear in good condition, periodic replacement ensures continued reliability.
Replace back-up rings alongside O-rings during regular maintenance cycles to maintain optimal sealing performance.
Cleanliness
Maintain a clean environment during installation and maintenance to prevent contaminants from compromising the sealing system. Dirt and debris can cause abrasion and reduce the effectiveness of the back-up rings.
Use clean tools and wear gloves to avoid transferring oils or contaminants to the back-up rings.
Monitor System Conditions
Continuously monitor the operating conditions, such as pressure, temperature, and fluid compatibility. Any changes in these conditions may necessitate adjustments in the maintenance routine or the replacement of the back-up rings.
By adhering to these best practices and maintenance routines, you can ensure the longevity and effectiveness of back-up rings, ultimately enhancing the reliability and performance of your sealing systems.
Custom Solutions for Unique Challenges
In addition to standard sizes and designs, custom back-up rings can be manufactured to meet specific application requirements.
This customization ensures the seals can withstand unique operational challenges, such as extreme temperatures or aggressive chemicals, further enhancing their performance and longevity.
Source Your Back-Up Ring Needs with Rocket Seals
Back-up rings are crucial components that support and enhance the performance of O-rings in high-pressure and demanding environments.
Their ability to prevent extrusion, provide additional support, and withstand harsh conditions makes them indispensable across various industries.
Rocket Seals offers a comprehensive range of back-up rings, including Buna and PTFE options, to meet the diverse needs of our clients. By incorporating back-up rings into your sealing systems, you can achieve greater reliability, efficiency, and longevity, ensuring the success and safety of your operations.
