In the world of industrial sealing solutions, quad rings represent a significant advancement, offering enhanced performance and durability over traditional options.
From high-pressure environments to dynamic mechanical systems, quad rings are revolutionizing sealing technology with their superior design and functionality.
As industry leaders in sealing technology, Rocket Seals has witnessed firsthand the transformative impact of quad rings. These seals are not merely replacements but elevated alternatives to traditional O-rings.
Here’s an expert overview of what quad rings are, the benefits of their optimized design, and which environments or applications they’re best suited for.

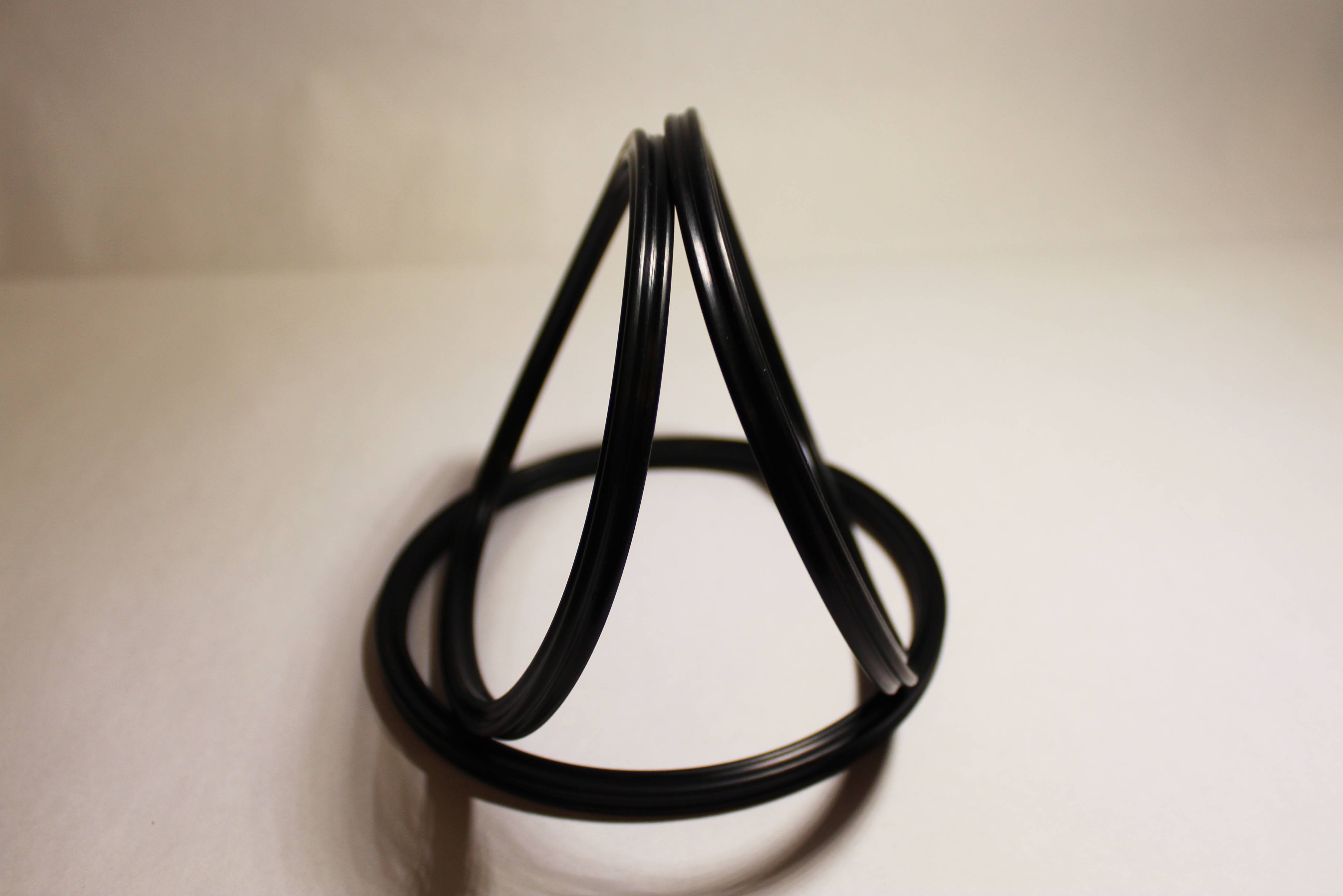

What is a Quad Ring?
Quad rings, often referred to as X-rings, are an innovative alternative to traditional O-rings. These seals have been engineered to replace square-cut O-rings and standard O-rings, providing twice the sealing surface and offering higher performance.
While quad rings come at a higher initial cost, the long-term benefits they offer in terms of reliability and reduced maintenance costs make them a smart investment for any operation.
Quad Rings vs. O-Rings
Choosing a quad ring over a standard O-ring offers several compelling benefits, particularly for applications demanding high strength and higher performance sealing capabilities.
Quad rings, with their unique multi-lobed design, provide low friction operation, which is crucial for extending the lifespan of the seal and the machinery it protects.
The design of quad rings allows for better pressure distribution across the sealing interface than traditional O-rings, significantly reducing the risk of deformation and failure. This makes quad rings ideal for dynamic applications where the seal is subject to frequent movements and varying pressures.
The availability of various quad ring sizes and dimensions ensures a perfect fit for a wide range of applications, effectively replacing standard O-rings in many contexts where enhanced performance and durability are essential.
The Advantages of Quad Rings
Quad rings are a big step up in sealing technology. Here are the key benefits that make quad rings a go-to for keeping systems running smoothly and efficiently.
Enhanced Sealing Capabilities
The design of quad rings includes a unique multi-lobed shape that increases the sealing surface area compared to standard O-rings. This design allows for better stress distribution across the seal, enhancing its effectiveness and reducing the likelihood of deformation under pressure.
The ability of quad rings to maintain a robust seal under varying pressures is a key factor in their superiority, making them essential in environments where seal integrity is crucial.
Prolonged Seal Life
Quad rings are designed to endure. The design requires less compression to create an effective seal, reducing the wear and tear typically seen with standard O-rings.
This means that quad rings not only last longer but also hold up better against the rigors of continuous operation. The result is fewer maintenance requirements and lower overall operational costs, making quad rings a cost-effective solution for long-term applications.
Prevention of Spiral Failure
A common issue with standard O-rings, particularly in dynamic applications, is spiral failure. The X-profile of quad rings provides a more stable seal, significantly reducing the risk of this type of failure.
By preventing the seal from rolling or twisting within the groove, quad rings ensure a more reliable operation, particularly in systems with rotational or reciprocating motion.
Better Lubricant Retention
Quad rings feature innovative grooves on both their inner and outer diameters that effectively retain lubricant. This design ensures ongoing lubrication, minimizes friction, and extends the operational lifespan of the seal.
By keeping the seal well-lubricated, quad rings contribute to smoother, more efficient system operations and prevent common issues associated with high-friction environments.
Versatile Fit and Easy Replacement
Designed to fit seamlessly into standard O-ring grooves, quad rings offer a drop-in replacement for many applications, facilitating easy upgrades from less effective seals.
This compatibility is particularly advantageous for industries looking to enhance system reliability without the need for extensive modifications or new equipment investments.
When to Use a Quad Ring
Quad rings are particularly advantageous in applications where their unique properties offer significant benefits over traditional O-rings. Here are several scenarios where using a quad ring makes sense:
- High-Pressure Systems: Quad rings offer double-sealing action, which provides a better seal and reduces the likelihood of leakage under pressure. This makes them suitable for hydraulic and pneumatic cylinders that operate under high pressure.
- Dynamic Applications: In systems involving rotary or reciprocating motions, such as pumps and motors, the stability of quad rings helps prevent twisting and extrusion, thereby maintaining a robust seal. Their design helps reduce friction, which is crucial for the longevity and efficiency of moving parts.
- Vacuum Applications: The unique design of quad rings also makes them suitable for use in vacuum systems, where maintaining a tight seal is critical to prevent air ingress.
- Lubrication Systems: Reduced friction is beneficial in lubrication systems, where minimizing resistance is essential for efficient operation. Quad rings help ensure that lubricants are effectively contained and delivered without substantial wear on the sealing element.
- Automotive Applications: In automotive engineering, including power steering systems, fuel systems, and transmission assemblies, quad rings can provide enhanced sealing performance due to their resistance to twisting and rolling as well as their ability to handle both dynamic and static sealing.
- Regulated Industries: In food processing, pharmaceutical, and semiconductor manufacturing, where contamination control is critical, quad rings help prevent fluid leaks that could lead to contamination.
- Chemical Processing Equipment: Due to their compatibility with various materials and resistance to a wide range of chemicals, quad rings are used in equipment that handles aggressive chemicals. This includes reactors, valves, and pumps in chemical processing plants.
As square-cut O-rings become less available and less effective, quad rings stand out as the ideal substitute. We recommend these high-performance seals for any application requiring superior sealing efficiency and durability.
Your Go-To for Quad Rings & Quad Ring Kits
Quad rings provide a multitude of benefits, making them an invaluable component in a wide range of industrial applications.
Rocket Seals is proud to supply these innovative sealing solutions, and our experts are ready to help you integrate them into your systems.
Contact Rocket Seals today to learn more about our quad rings and other sealing solutions. Let us help you enhance the performance and reliability of your machinery with our top-quality products and expertise.
