Elevated temperatures, higher speeds, extreme environments, faster gas decompression, and aggressive media all make sealing more critical and difficult to achieve.
Energized seals are pivotal components in various high-pressure and high-stakes industries. They’re designed to ensure the integrity of sealing systems under extreme conditions.
As industrial demands grow, the reliability of these seals becomes even more critical. From aerospace to oil and gas, the ability of energized seals to maintain performance under fluctuating pressures and temperatures makes them indispensable across many applications.
Understanding the science behind these seals is essential for selecting the right seal for your needs and ensuring the reliability and efficiency of your systems. We'll explore their functionality, types, design, applications, and future developments, providing a comprehensive overview of energized seals and their crucial role in modern industry.

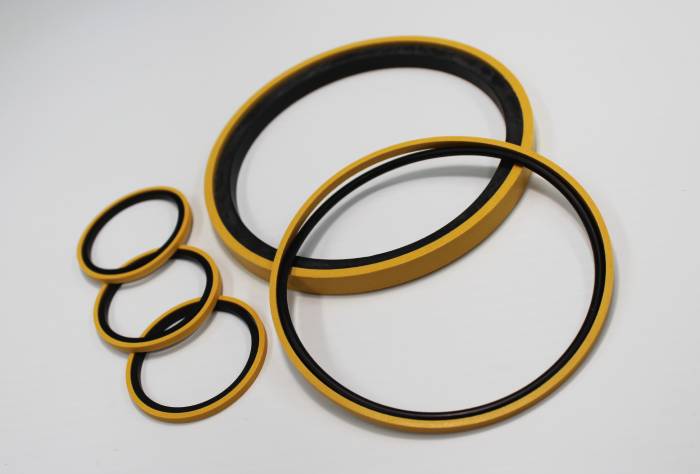

What are Energized Seals?
Energized seals are specialized sealing devices that incorporate an additional component, usually a spring, to maintain seal integrity under varying pressure and temperature conditions.
Unlike conventional seals, energized seals are designed to adapt to changes in their environment, providing reliable sealing performance in dynamic applications.
How Do Energized Seals Work?
Energized seals work by utilizing an internal energizer, often a metal or polymer spring, which exerts a continuous force on the sealing element. This force ensures that the seal remains in contact with the sealing surface, compensating for any wear, thermal expansion, or pressure fluctuations.
The resilient pressure of an energizer compensates for and overcomes several practical problems:
- Lip pressure even after the lip material wears down over time. With rods, shafts, cylinders, and housing contacting a seal, energized lips adapt to fit around humps and hollows to maintain sealing.
- When components are misaligned, energized lips dynamically move to maintain contact.
- Manufacturing tolerances and clearances are not as critical, because energized lips can take up the slack.
The radial pressure maintained by an energizer keeps sealing lips in contact with mating surfaces even before fluid or gas pressure is applied, providing good low-pressure sealing capability, while increasing the force when the system pressure is applied.

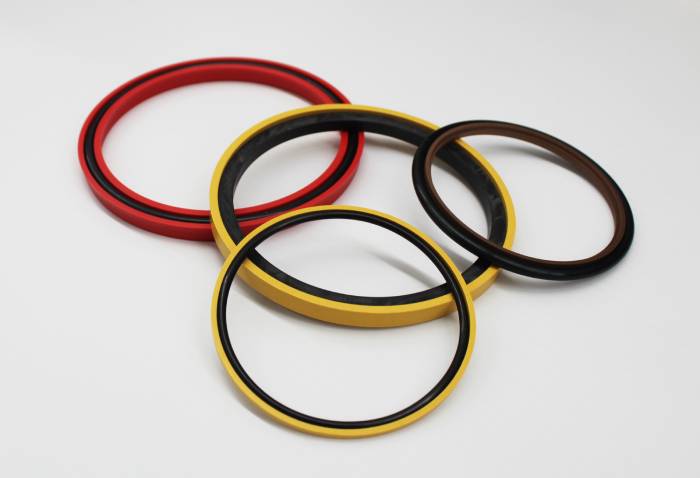

Types of Energized Seals
There are several types of seals, each designed for specific applications and environmental conditions. The most common types include:
Spring Energized Seals
Spring-energized seals use a metal or polymer spring to maintain constant pressure on the sealing lip. These seals are highly effective in dynamic applications where pressure and temperature vary significantly.
PTFE Spring Energized Seals
PTFE spring energized seals are made from polytetrafluoroethylene (PTFE), a material known for its excellent chemical resistance and low friction properties. These seals are ideal for applications involving aggressive chemicals and high temperatures.
Lip Seals
Lip seals are a type of energized seal designed with a flexible lip that maintains contact with the sealing surface. The lip's flexibility allows it to adapt to surface irregularities, ensuring a reliable seal.
Energized Seal Design
The design of energized seals involves several critical factors to ensure optimal performance:
Advanced Materials
Selecting the right material is crucial for energized seal performance. Materials like PTFE, elastomers, and metals are commonly used due to their durability and resistance to extreme conditions. Advanced materials are often employed to enhance seal longevity and reliability.
Design Features
Energized seals are designed with features that optimize their performance. These features include the shape and size of the sealing lip, the type of energizer used, and the material composition. Design features are tailored to specific applications to ensure the seal can withstand the operating conditions.
High-Pressure Sealing Methods
Energized seals are often used in high-pressure environments, where traditional seals may fail. High-pressure sealing methods involve designing the seal to withstand the force exerted by high-pressure fluids, ensuring leak-free operation.
When to Use Energized Seals
Energized seals are ideal for applications where traditional seals may not provide adequate performance. Situations that require energized seals include:
High-Pressure Applications
In high-pressure environments, energized seals offer superior performance by maintaining a tight seal even under extreme pressure. This makes them suitable for hydraulic systems, oil and gas equipment, and aerospace applications.
Temperature Fluctuations
Energized seals are designed to adapt to temperature changes, making them ideal for applications with varying thermal conditions. They prevent leaks by compensating for thermal expansion and contraction.
Dynamic Applications
In applications involving movement, such as rotating shafts or reciprocating pistons, energized seals provide reliable sealing by maintaining constant pressure on the sealing surface.
Where to Use Energized Seals
Energized seals are used in a variety of industries and applications, including:
Aerospace
In the aerospace industry, energized seals are used in hydraulic systems, fuel systems, and other critical components where reliability is paramount. Their ability to withstand extreme temperatures and pressures makes them ideal for this industry.
Automotive
Energized seals are used in automotive applications, such as engine components and transmission systems, where they provide reliable sealing under harsh conditions. They help improve vehicle performance and reduce the risk of leaks.
Oil and Gas
The oil and gas industry relies on energized seals for equipment used in exploration, drilling, and production. These seals ensure leak-free operation in high-pressure and high-temperature environments.
Manufacturing
In manufacturing, energized seals are used in machinery and equipment to prevent leaks and ensure efficient operation. They are essential for maintaining the reliability and performance of industrial systems.
The Future of Energized Seals
The future of energized seals lies in the development of new materials and advanced manufacturing techniques. Innovations in material science will lead to seals that offer even greater durability and performance.
Additionally, advancements in design and manufacturing will enable the production of customized seals tailored to specific applications.
Innovations in Material Science
Researchers are continuously exploring new materials that offer improved performance characteristics, such as enhanced chemical resistance, lower friction, and greater durability.
These materials will enable the development of seals that can withstand even more extreme conditions.
Advanced Manufacturing Techniques
The use of advanced manufacturing techniques, such as additive manufacturing (3D printing), will allow for the production of complex seal designs that were previously unattainable. This will lead to seals that are more efficient and reliable.
Customization and Optimization
Future developments in energized seals will focus on customization and optimization for specific applications. By tailoring the design and materials to the unique requirements of each application, manufacturers can provide seals that offer optimal performance and reliability.
Explore Rocket Seals Energized Seal Options
Energized seals play a crucial role in ensuring the integrity and reliability of sealing systems in various industries. Understanding the science behind these seals, their design features, and their applications can help in selecting the right seal for your needs.
As advancements in materials and manufacturing continue, the future of energized seals looks promising, with the potential for even greater performance and reliability.
Rocket Seals offers a comprehensive range of energized seals, including PTFE spring energized seals and other advanced sealing solutions.
