In the world of industrial and hydraulic machinery and equipment (any applications involving fluid movement), ensuring the longevity and efficiency of equipment is paramount. Uptime is virtually always important while avoiding failure can literally be mission critical.
One small but crucial component that plays a significant role in achieving this is the oil seal. Oil seals are designed to prevent the leakage of lubricants, control pressure, and exclude contaminants.
In this comprehensive guide, we'll explore what oil seals are, their different types, purposes, applications, and the benefits they offer.
What is an Oil Seal?

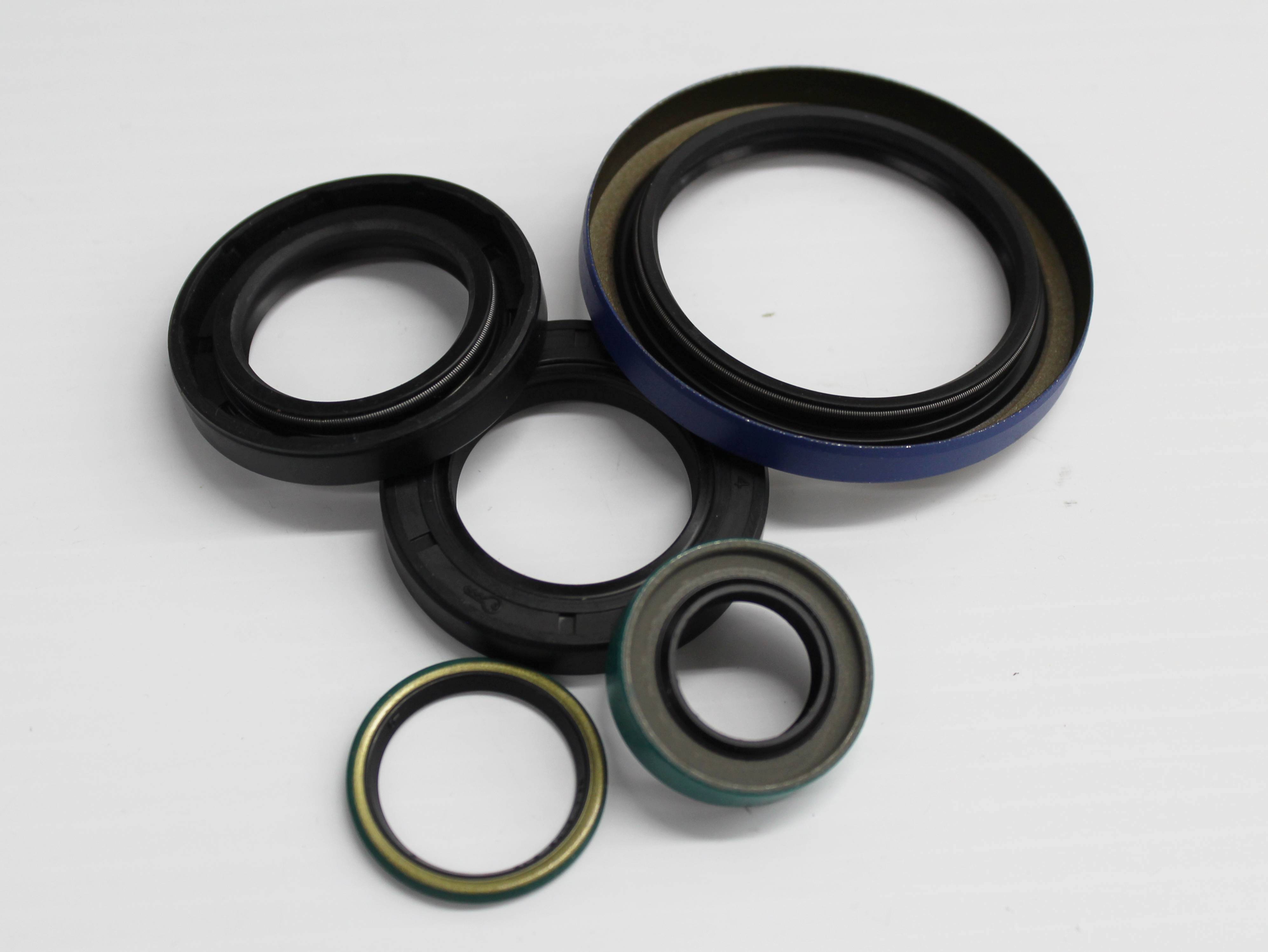

An oil seal, also known as a rotary shaft seal or lip seal, is a device that helps join systems or mechanisms together by preventing leakage, containing pressure, or excluding contaminants.
This component is typically made from rubber and fits securely around the rotating parts of a machine to maintain a fluid seal. Oil seals are vital in various automotive, manufacturing, and industrial applications. Their functionality and reliability are foundational to the seamless operation of complex machinery.
Different Types of Oil Seals
Oil seals come in various forms to cater to different engineering needs and operational conditions. Understanding the oil seal types available is crucial for selecting the right seal for your application.

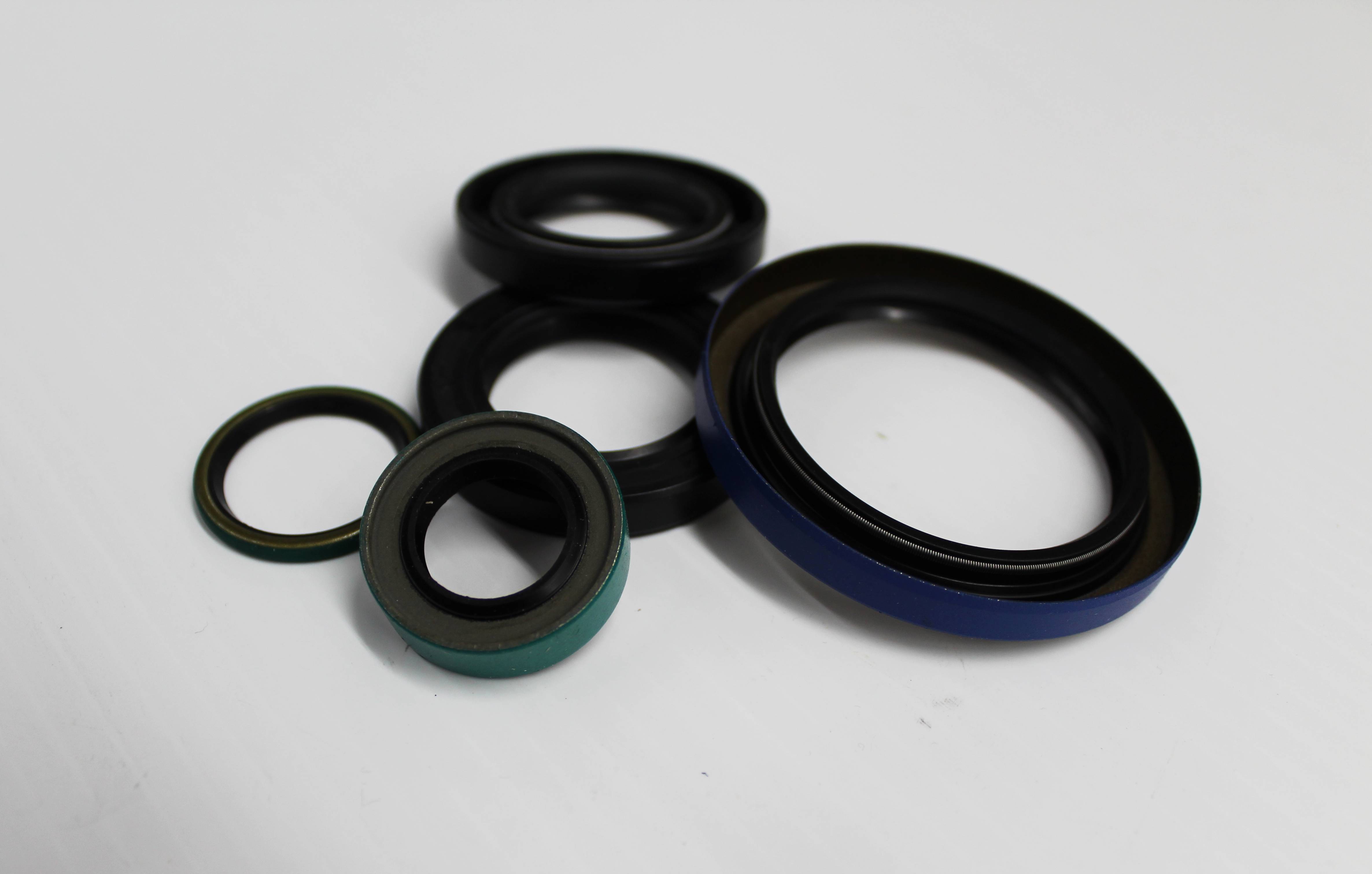

The most common styles of oil seals include:
- Single Lip Seals: These are used for sealing one fluid type and are ideal for less severe environments.
- Double Lip Seals: These provide a secondary sealing lip, which offers additional security against contamination and leakage.
- High-Pressure Seals: These are designed to withstand high pressure and are typically reinforced with metal rings or additional support components.

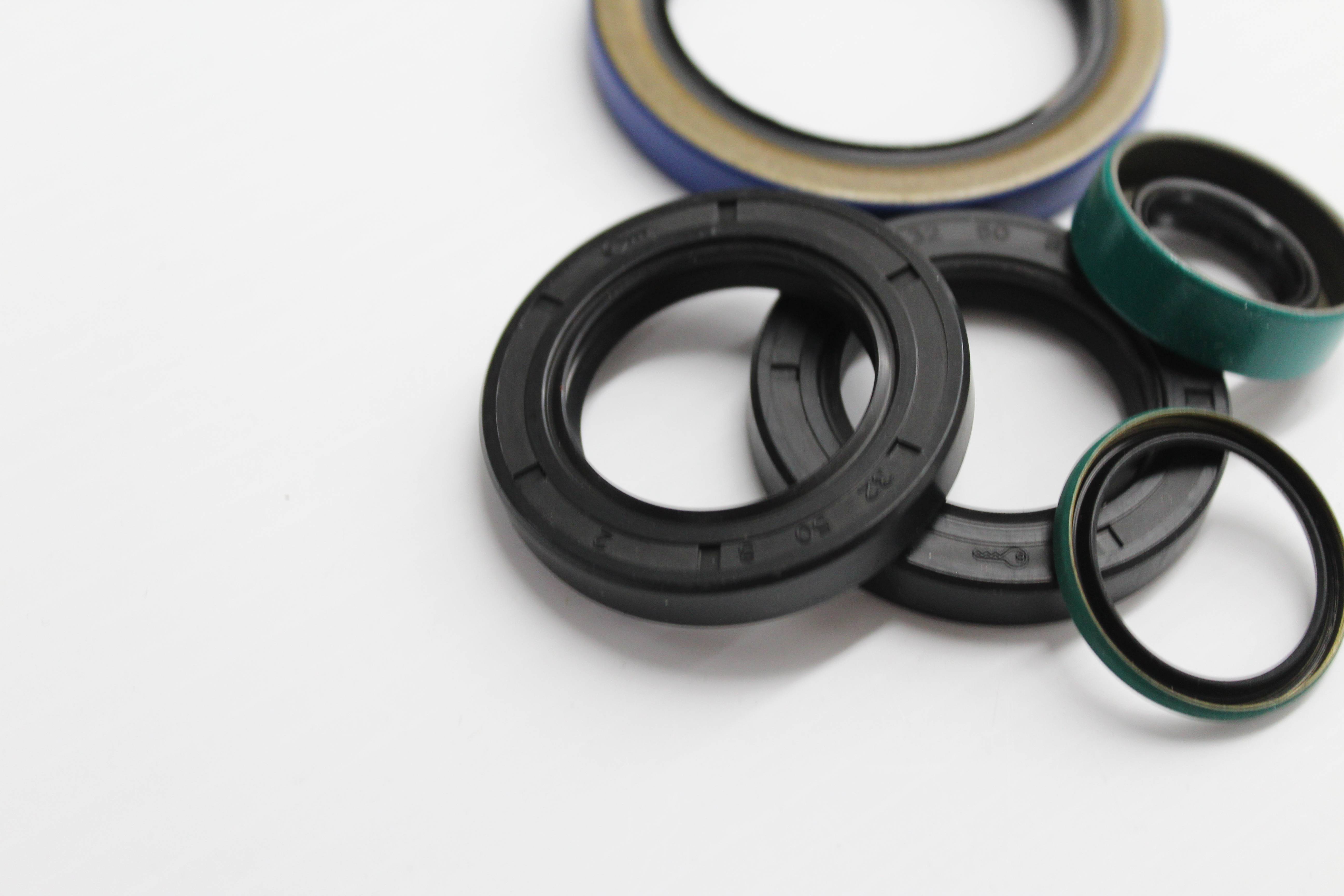

Each type of oil seal serves a specific purpose and is crafted from different materials, including nitrile rubber, polyacrylate, silicone, or fluorocarbon, depending on the environmental conditions and physical demands of the application.
Oil Seal Sizes and Applications
The oil seal size must precisely match the dimensions of the machinery components it is designed to protect. Incorrect sizing can lead to leaks, contamination, and eventual mechanical failure.
Therefore, selecting the right oil seal size is crucial for ensuring optimal performance and durability of the equipment.
Oil seals are used in a plethora of applications such as:
- Transmissions and engines: Critical for preventing oil and lubricant leakage in transmissions and engines. They help maintain proper lubrication of the moving parts, such as crankshafts and camshafts, while keeping dirt, debris, and contaminants out. This ensures smooth operation, reduces wear and tear, and extends the engine's lifespan.
- Electric motors and pumps: Protects internal components from dust, dirt, and other contaminants while ensuring that lubricants like grease or oil do not escape from the motor. This improves the efficiency of the motor or pump, reduces the risk of overheating due to insufficient lubrication, and increases its operational lifespan.
- Industrial gearboxes and mechanical drives: Maintains the integrity of the lubricant that reduces friction between gears. Oil seals keep gear oil inside the gearbox — essential for smooth and efficient gear rotation — while preventing external contaminants from entering the system. This ensures that the gears function properly under high stress and heavy loads, reducing the need for frequent maintenance.
- Water-movement machines: Oil seals are placed around the drum shaft to prevent water from leaking into the motor or other electrical components. They also ensure that lubricants stay in place, preventing the drum from seizing up or wearing out prematurely. By keeping water and detergent out of critical areas, oil seals help extend the life of washing machines and ensure safe operation.
- Agricultural, farm, and construction equipment: Machinery, such as tractors and harvesters, operate in harsh environments where dust, dirt, and moisture are prevalent. Oil seals in these machines protect the bearings, shafts, and other moving parts from contamination while retaining lubricants. This reduces the risk of mechanical failure, keeps the equipment running efficiently, and decreases the frequency of repairs, which is crucial for uninterrupted operations.
Each application requires a specific type of oil seal that can handle the operational demands and environmental conditions associated with its use.
Benefits of Using Oil Seals in Applications
Incorporating the correct oil seals into your machinery offers several benefits:
- Leak Prevention: The primary function of an oil seal is to prevent the leakage of fluids. This not only helps in maintaining the efficiency of the machinery but also prevents the mixing of fluids which could lead to damage and costly repairs.
- Lifespan Extension: By keeping contaminants out and ensuring proper lubrication within the machinery, oil seals extend the lifespan of the equipment.
- Cost Efficiency: Reducing the need for frequent maintenance and part replacement, oil seals offer a cost-effective solution to keeping machinery in top condition.
- Improved Safety: By preventing leaks and failures, oil seals contribute to safer operation conditions in industrial environments.
The benefits of using oil seals are clear — they not only protect equipment but also optimize operational efficiency and safety. Their role is indispensable in maintaining the high performance and longevity of mechanical systems.
Selecting the Right Oil Seal for Your Application
Choosing the right oil seal involves understanding the specific requirements of your application — it’s not a one-size-fits-all decision and requires careful consideration of the operating conditions it will be subjected to.
Factors to consider include:
- Operating Temperatures: The material of the oil seal should be able to withstand the temperature extremes of the application.
- Chemical Compatibility: The oil seal material needs to be resistant to any chemicals it will come into contact with.
- Pressure Levels: The seal should handle the pressures associated with the application without deforming or breaking.
The compatibility of the seal material with these factors is crucial to ensure that the oil seal performs its functions effectively without degradation or failure.
This careful selection helps avoid unscheduled downtimes and costly repairs, thereby enhancing the operation's overall productivity.
Maximize Your Equipment Efficiency with the Right Oil Seals
Oil seals are indispensable components in many types of machinery, offering essential benefits that ensure operational integrity and efficiency.
By understanding the different types of oil seals and their applications, engineers, project managers, and maintenance professionals can select the right oil seal to meet their specific needs, ensuring the longevity and reliability of their equipment.
Remember, selecting the right rubber oil seal and maintaining it appropriately according to its purpose and application can significantly enhance your machinery's performance and prevent downtime and costly repairs.
By investing in quality oil seals and understanding their proper use, businesses can achieve greater efficiency and reliability in their operations. Contact the Rocket Seals team today to learn how we can meet your oil seal needs.
