Choosing the right seal for your application is critical, and one of the key factors to consider is durometer. But what exactly is durometer, and why does it matter for sealing applications? This guide will break down the concept of durometer, its importance, and how to choose the best durometer rating for your specific needs.
What Is Durometer?
Durometer is a measure of a material’s hardness. In sealing applications, it indicates how resistant the material is to deformation when a force is applied. This measurement is crucial for determining how a seal will perform under various conditions, such as pressure, temperature, and wear.

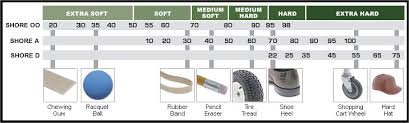

The term “durometer” originates from the device used to measure hardness, also called a durometer. This tool provides a numerical value on a standardized scale, often ranging from 0 to 100. The higher the number, the harder the material.
Common Scales for Measuring Durometer
The two most common durometer scales used in sealing applications are:
Shore A Scale: Ideal for soft to medium-hard materials, such as rubber and elastomers. Most o-rings and gaskets fall within this range.
Shore D Scale: Used for harder materials, such as plastics and thermoplastics.
For example, an O-ring with a Shore A durometer rating of 70 is considered a versatile choice, offering a good balance between flexibility and durability.
Why Is Durometer Important in Sealing Applications?
The durometer rating of a seal impacts its performance in several ways. Here’s why it’s critical to understand:
1. Compression and Flexibility
A lower durometer material (softer) provides better flexibility and is more effective in low-pressure environments where a tight seal is essential. These materials can conform to irregular surfaces, creating a reliable seal.
2. Durability and Resistance
A higher durometer material (harder) is more durable and better suited for high-pressure environments. These seals resist deformation and are less prone to wear and tear over time.
3. Environmental Considerations
The durometer rating also affects how a seal responds to extreme temperatures and chemical exposure. For example, softer seals may lose integrity at higher temperatures, while harder seals may become brittle in colder conditions.
Factors to Consider When Choosing a Durometer
Durometer in O-Rings: A Practical Example
O-rings are one of the most common sealing solutions, and their performance heavily depends on the durometer rating.
- Low Durometer O-Rings (50-60 Shore A): Ideal for static applications where the seal remains stationary, such as in flanges or housing covers.
- Medium Durometer O-Rings (70 Shore A): The industry standard for most applications, balancing flexibility and durability.
- High Durometer O-Rings (80-90 Shore A): Best for dynamic applications involving motion, such as in pumps or cylinders, where resistance to extrusion is key.
Testing and Measuring Durometer
Testing durometer is straightforward but requires precision. Using a durometer gauge, a calibrated spring presses an indenter into the material. The depth of penetration determines the hardness value on the durometer scale.
To ensure accuracy, it’s important to:
- Test materials at consistent temperatures.
- Use the appropriate scale (e.g., Shore A or Shore D) for the material.
- Follow industry standards, such as ASTM D2240.
Choosing the Right Durometer for Your Needs
Understanding durometer is essential for selecting the right seal. By evaluating factors such as pressure, temperature, and chemical exposure, you can ensure optimal performance and longevity for your sealing solutions.
At Rocket Seals, we’re here to help you find the perfect seals for your application. Whether you need guidance on durometer ratings or assistance with material selection, our team of experts is ready to assist.
