What Are Thread Seals? Types, Comparisons & Best Practices

In nearly every industry — automotive, aerospace, hydraulics, medical devices, and beyond — threaded connections are essential. They’re used to join components, contain fluids and gases, and withstand vibration, heat, and pressure.

But threads, by their very nature, create small helical leak paths. Even the most carefully machined metal-to-metal joints can allow gas or fluid to escape under pressure.

That’s where thread seals come in. These specialized sealing elements are engineered to close off those micro-pathways while maintaining the mechanical integrity of the joint. A properly chosen thread seal can be the difference between a reliable, long-lasting connection and costly downtime from leaks, contamination, or equipment failure.

We’ll explore what thread seals are, how they work, how they compare to other sealing solutions, and best practices for choosing and installing them.

What Is a Thread Seal?

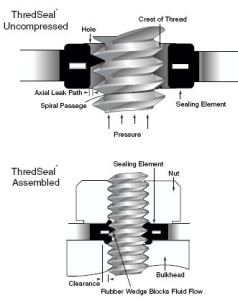

A thread seal, also known as a fastener seal or molded thread seal, is a sealing element typically made from elastomeric material and bonded to a metal retainer. When installed on a threaded fastener or fitting, the seal compresses against the mating surface and into the thread grooves, blocking leak paths.

Key characteristics of thread seals:

• Self-centering design – no special alignment required.
• Non-directional sealing – effective regardless of installation orientation.
• Ease of use – no need for additional gaskets, tapes, or adhesives.
• Compatibility – works with standard fasteners and fittings.

In short, thread seals provide an efficient, cost-effective way to ensure reliable sealing in threaded assemblies.

Types of Thread Seals & Materials

Thread seals aren’t one-size-fits-all. They’re designed for different operating conditions and are available in a range of materials and configurations.

Common types include:

• Elastomeric thread seals – usually rubber-based (e.g., Nitrile, EPDM, Viton®). Best for general-purpose sealing.
• High-temperature seals – formulated for aerospace, automotive, or industrial applications where extreme heat is present.
• Chemical-resistant seals – designed to withstand aggressive fluids, fuels, and solvents.
• Metal-backed seals – combine elastomer sealing with the strength and stability of a metal retainer.
• Specialty thread seals – engineered for high-pressure gas, cryogenic conditions, or vacuum systems.

Choosing the right material is critical because the seal must withstand the same operating environment as the fastener itself. But how do thread seals stack up against other sealing options like O-rings, gaskets, or sealants? Let’s compare.

Thread Seal vs Alternative Seals (O-Rings, Gaskets, Sealant Tapes)

Thread seals aren’t the only solution for sealing threaded connections. Each alternative comes with its own strengths and limitations.

Comparisons:

• Thread Seals vs. O-Rings
• Thread seals are built into the fastener, simplifying installation.
• O-rings often require custom grooves and precision machining.
• Thread seals generally provide better reusability in fastener systems.


• Thread Seals vs. Gaskets
• Gaskets work well on flanges but don’t address leak paths in threads.
• Thread seals specifically target the spiral pathways formed by threads.


• Thread Seals vs. Sealant Tapes or Liquid Sealants
• PTFE tapes and anaerobic sealants are inexpensive but messy and often unreliable under vibration.
• Thread seals offer cleaner, more consistent performance and less chance of contamination.

While O-rings, gaskets, and sealants have their place, thread seals excel in threaded connections where reliability and repeatability are critical. To get the most from them, however, design and installation best practices must be followed.

Common Applications of Thread Seals

Thread seals are widely used across industries where threaded fasteners and fittings must remain leak-free under demanding conditions. Their adaptability makes them one of the most practical sealing solutions.

Industries that rely on thread seals:

• Hydraulics & Fluid Power: Prevent leakage in high-pressure hydraulic fittings and cylinders.
• Aerospace: Ensure reliability in critical fuel, hydraulic, and pressurized gas systems.
• Automotive: Provide durable sealing in engines, transmissions, and braking systems.
• Oil & Gas: Maintain integrity in harsh environments with exposure to chemicals and extreme pressures.
• Plumbing & Industrial Equipment: Offer a clean, reusable alternative to tapes or liquid sealants.

From aerospace fuel systems to everyday plumbing, thread seals adapt to a wide range of environments — making them one of the most versatile sealing options available.

Design & Installation Best Practices for Thread Seals

The effectiveness of a thread seal depends not only on its material but also on how it’s installed.

Best practices include:

• Surface finish and tolerances: The mating hardware must be free from burrs and major surface defects.
• Proper compression: Ensure the seal is compressed within its design range—too little allows leaks, too much causes material degradation.
• Torque control: Overtightening can damage both the threads and the seal.
• Thread alignment: Avoid cross-threading, which can cut or pinch the seal.

Even when best practices are followed, certain conditions — temperature extremes, chemical exposure, or vibration — can challenge seal integrity. Understanding failure modes helps prevent issues before they arise.

Installation Best Practices for Thread Seals

Even the highest-quality seal can fail if it’s not installed correctly. Following proper installation steps helps maximize sealing performance and service life.

Thread seal installation tips:

• Inspect threads: Ensure mating hardware is clean and free of burrs, scratches, or contamination.
• Use proper torque: Tighten to manufacturer-recommended specifications — overtightening can damage seals and threads.
• Align threads carefully: Avoid cross-threading, which can cut or pinch the seal.
• Lubricate if required: Certain seals benefit from light lubrication during assembly to reduce friction.
• Verify compression: Confirm that the seal compresses evenly within its design limits.

By observing these practices, technicians and engineers can help prevent premature failures and extend equipment life.

Performance & Leakage Concerns: Common Failure Modes

No seal lasts forever, but proper selection and maintenance extend performance life.

Common failure modes include:

• Overcompression or undercompression – reduces elasticity or fails to fill gaps.
• Material degradation – exposure to heat, chemicals, or UV light.
• Wear and creep – long-term compression can flatten the elastomer.
• Improper fit – mismatched thread geometry or poor hardware tolerances.

Preventing these issues means not only selecting the right seal but also tailoring the solution to the demands of your industry.

Failure Modes of Thread Seals

Like all sealing components, thread seals can fail if exposed to conditions beyond their design limits. Recognizing these failure modes helps troubleshoot issues before they lead to costly downtime.

Common causes of failure include:

• Overcompression or undercompression: Either flattens the seal prematurely or fails to fully block leak paths.
• Material degradation: Exposure to chemicals, heat, or UV light breaks down elastomers over time.
• Wear and creep: Long-term compression can cause seals to lose elasticity and leak.
• Improper hardware fit: Poor tolerances or mismatched threads create pathways that seals can’t cover.

Understanding these failure mechanisms reinforces why selecting the right material, verifying hardware quality, and following installation best practices are all essential to reliable performance.

Advanced Use Cases & Industry Applications

Thread seals are essential in industries where leaks can have serious consequences.

Applications include:

• Aerospace: High-pressure fuel and hydraulic systems.
• Medical devices: Ensuring sterile, leak-free fluid delivery.
• Fluid power: Hydraulic and pneumatic systems under high loads.
• Instrumentation: Low-leak seals for gas and vacuum systems.

Because applications vary so widely, selecting the right thread seal requires balancing multiple factors.

Selecting the Right Thread Seal for Your Application

Choosing the right thread seal starts with understanding your operating environment.

Key considerations:

• Pressure & temperature range
• Chemical compatibility
• Reusability requirements
• Material durometer and retainer type
• Industry-specific certifications (FDA, aerospace, etc.)

When in doubt, consulting with a seal specialist ensures that your system is protected against leaks and downtime.

Why Thread Seals Are Essential

Threaded fasteners are everywhere, but they aren’t inherently leakproof. That’s why thread seals are a critical component in industries where reliability and safety matter. Compared to O-rings, gaskets, or liquid sealants, they offer consistent performance, easy installation, and long-term protection against leakage.

Whether you’re working in aerospace, medical devices, hydraulics, or heavy industry, choosing the right seal — and installing it correctly — can make all the difference.

At Rocket Seals, we specialize in helping purchasing agents and manufacturers find the right sealing solution for their specific needs. Contact our team today to discuss your application or request a quote on thread seals tailored to your project.
